Inverse Whitening procedure with AutoRegressive (AR) model

author: Elena Cuoco

• We can ‘color’ the data which have been whitened, using the P AR parameters and an ARMA(P,1) filter

import time
import os
import pytsa
from pytsa.tsa import *
from pytsa.tsa import SeqView_double_t as SV
from wdf.config.Parameters import *
from wdf.processes.Whitening import  *
from wdf.processes.DWhitening import  *
import logging, sys

logger = logging.getLogger()
logger.setLevel(logging.INFO)
logging.debug("info")

new_json_config_file = True    # set to True if you want to create new Configuration
if new_json_config_file==True:
    configuration = {
      "file": "./data/test.gwf",
      "channel": "H1:GWOSC-4KHZ_R1_STRAIN",
      "len":1.0,
      "gps":1167559100,
      "outdir": "./",
      "dir":"./",
      "ARorder": 2000,
      "learn": 200,
      "preWhite":4
    }

    filejson = os.path.join(os.getcwd(),"InputParameters.json")
    file_json = open(filejson, "w+")
    json.dump(configuration, file_json)
    file_json.close()
logging.info("read parameters from JSON file")

par = Parameters()
filejson = "InputParameters.json"
try:
    par.load(filejson)
except IOError:
    logging.error("Cannot find resource file " + filejson)
    quit()

strInfo = FrameIChannel(par.file, par.channel, 1.0, par.gps)
Info = SV()
strInfo.GetData(Info)
par.sampling = int(1.0 / Info.GetSampling())
logging.info("channel= %s at sampling frequency= %s" %(par.channel, par.sampling))

whiten=Whitening(par.ARorder)
par.ARfile = "./ARcoeff-AR%s-fs%s-%s.txt" % (
                par.ARorder, par.sampling, par.channel)
par.LVfile ="./LVcoeff-AR%s-fs%s-%s.txt" % (
                par.ARorder, par.sampling, par.channel)

if os.path.isfile(par.ARfile) and os.path.isfile(par.LVfile):
    logging.info('Load AR parameters')
    whiten.ParametersLoad(par.ARfile, par.LVfile)
else:
    logging.info('Start AR parameter estimation')
    ######## read data for AR estimation###############
    strLearn = FrameIChannel(par.file, par.channel, par.learn, par.gps)
    Learn = SV()
    strLearn.GetData(Learn)
    whiten.ParametersEstimate(Learn)
    whiten.ParametersSave(par.ARfile, par.LVfile)

INFO:root:read parameters from JSON file
INFO:root:channel= H1:GWOSC-4KHZ_R1_STRAIN at sampling frequency= 4096
INFO:root:Start AR parameter estimation

data = SV()
dataw = SV()
streaming = FrameIChannel(par.file, par.channel, par.len, par.gps)

streaming.GetData(data)
N=data.GetSize()

Dwhiten=DWhitening(whiten.LV,N,0)

for i in range(par.preWhite):
    streaming.GetData(data)
    Dwhiten.Process(data, dataw)

(D)Whiten the data

How whiten your data are depends on a series of factors: the stationarity of the noise, the number of AR parameters you used, the lenght of the sequence of data you used to estimate the parameters

import numpy as np
import matplotlib

import matplotlib.pyplot as plt

%matplotlib inline

plt.rcParams['figure.figsize'] = (15.0, 10.0)
mpl_logger = logging.getLogger("matplotlib")
mpl_logger.setLevel(logging.WARNING)


x=np.zeros(data.GetSize())
y=np.zeros(data.GetSize())
yw=np.zeros(dataw.GetSize())

for i in range(data.GetSize()):
    x[i]=data.GetX(i)
    y[i]=data.GetY(0,i)
    yw[i]=dataw.GetY(0,i)
plt.figure(figsize=(10,4))


plt.plot(x, y, 'b',label='Raw data')
plt.plot(x, yw, 'g',label='whitened data')
plt.legend()
plt.show()

plt.figure(figsize=(10,4))

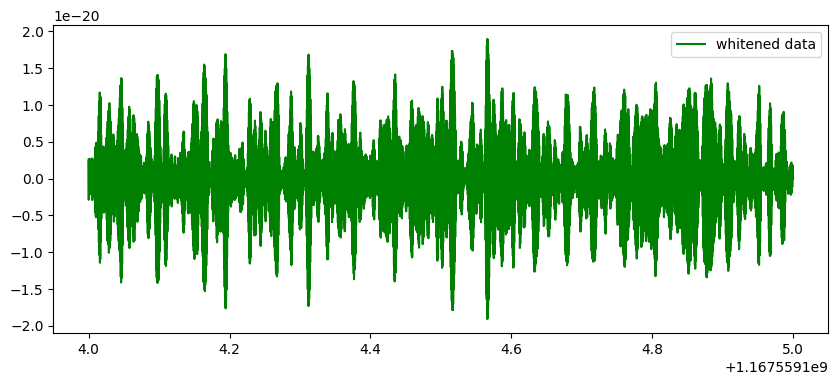

plt.plot(x, yw, 'g', label='whitened data')

plt.legend()
plt.show()

Recoloring data using an ARMA (P,Q) filter

P= the numer of AR parameters, Q=1

In order to take into account the transient response of the filter, we need to do a ‘preaheating for the filter’ and so go first in a loop to get good result

from wdf.processes.Coloring import *
from wdf.structures.array2SeqView import *


datac = SV()

dataw=SV()

Colored=Coloring(par.ARorder)
Colored.ParametersLoad(par.ARfile)
for j in range(5):
    streaming.GetData(data)
    whiten.Process(data, dataw)
    Colored.Process(dataw, datac)

%matplotlib notebook

x=np.zeros(data.GetSize())
y=np.zeros(data.GetSize())
yc=np.zeros(datac.GetSize())


for i in range(data.GetSize()):
    x[i]=data.GetX(i)
    y[i]=data.GetY(0,i)
    yc[i]=datac.GetY(0,i)

plt.figure(figsize=(10,4))

plt.plot(x, y,  label='Raw data')
plt.plot(x, yc, label='Recolored-data')

plt.legend()
plt.show()

TO BE DOCUMENTED
